graphics.h File Reference

Contains all the print functions. More...

#include <stdint.h>
#include <stddef.h>
#include <stdarg.h>
#include <stdbool.h>
#include <basics.h>
#include <strings.h>
#include <stream.h>

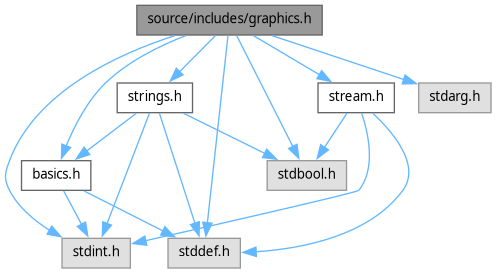

Include dependency graph for graphics.h:

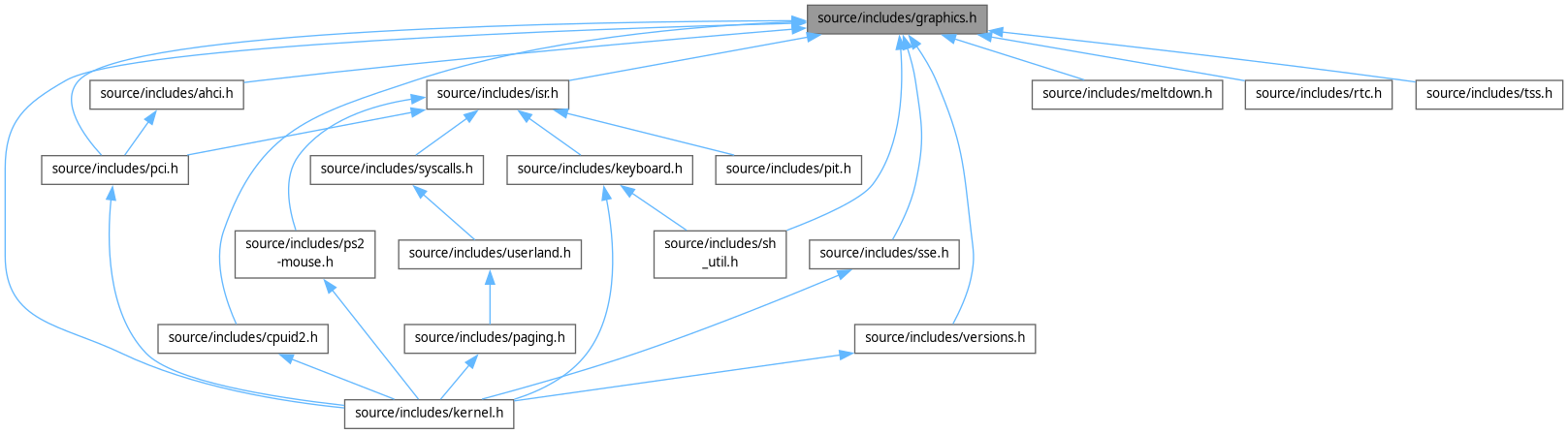

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	reset_color   "\033[37m"
#define	red_color   "\x1b[91m"
#define	yellow_color   "\x1b[93m"
#define	blue_color   "\x1b[36m"
#define	green_color   "\x1b[32m"
#define	orange_color   "\x1b[38;5;208m"
#define	printf(fmt, ...)
#define	printfnoln(fmt, ...)
#define	eprintf(fmt, ...)

Functions
void	warn (cstring message, cstring file)
	Display a warning message.
void	error (cstring message, cstring file)
	Display an error message.
void	info (cstring message, cstring file)
	Display an informational message.
void	done (cstring message, cstring file)
	Display a success message.
void	putc (char c)
	Prints a char, using vput(char c); Replaces '' with "\b \b".
void	vputc (char c)
	Prints a char though the standard streams.
void	printbin (uint8_t value)
	Prints a value in binary format.
int	format_number (char *out, long value, int base, int width, bool zero, bool upper)
void	printf_internal (cstring file, cstring func, int64 line, cstring format,...)
	Prints with formatting supported.
void	printfnoln_internal (cstring file, cstring func, int64 line, cstring format,...)
	Prints with formatting supported (does not add an new line).
void	vprintf_internal (stream_t stream, cstring file, cstring func, int64 line, bool newline, cstring format, va_list argp)
	Core printf implementation used internally by both printf_internal and printfnoln_internal.
int	vsnprintf (char *buf, size_t size, const char *fmt, va_list args)
	Formats a string into a buffer using a va_list.
int	snprintf (char *buf, size_t size, const char *fmt,...)
	Formats a string into a fixed-size buffer.
void	kprint (cstring msg)
	RAW kernel print function for plain strings. (No Formatter & No Streams).
void	print (cstring s)
	Plain print function, goes through the stream.
void	print_bitmap (int x, int y, int w, int h, bool *pixels, int32 color)

Variables
string	last_filename
string	last_print_file
string	last_print_func
int32	last_print_line
bool	enable_logging

Detailed Description

Contains all the print functions.

Author

Pradosh (prado.nosp@m.shga.nosp@m.me@gm.nosp@m.ail..nosp@m.com) and (partially) GAMINGNOOB (https://github.com/GAMINGNOOBdev)

Version

0.1

Date

2023-10-21

Copyright

Copyright (c) Pradosh 2023

Definition in file graphics.h.

Macro Definition Documentation

blue_color

#define blue_color   "\x1b[36m"

Definition at line 26 of file graphics.h.

eprintf

#define eprintf	(		fmt,
			... )

Value:

eprintf_internal(__FILE__, __func__, __LINE__, fmt, ##__VA_ARGS__)

Definition at line 51 of file graphics.h.

green_color

#define green_color   "\x1b[32m"

Definition at line 27 of file graphics.h.

orange_color

#define orange_color   "\x1b[38;5;208m"

Definition at line 28 of file graphics.h.

printf

#define printf	(		fmt,
			... )

Value:

printf_internal(__FILE__, __func__, __LINE__, fmt, ##__VA_ARGS__)

Definition at line 45 of file graphics.h.

printfnoln

#define printfnoln	(		fmt,
			... )

Value:

printfnoln_internal(__FILE__, __func__, __LINE__, fmt, ##__VA_ARGS__)

Definition at line 48 of file graphics.h.

red_color

#define red_color   "\x1b[91m"

Definition at line 24 of file graphics.h.

reset_color

#define reset_color   "\033[37m"

Definition at line 23 of file graphics.h.

yellow_color

#define yellow_color   "\x1b[93m"

Definition at line 25 of file graphics.h.

Function Documentation

done()

void done	(	cstring	message,
		cstring	file )

Display a success message.

This function displays a success message on the console with color formatting.

Parameters

message	The success message to be displayed.
file	The file name associated with the success.

error()

void error	(	cstring	message,
		cstring	file )

Display an error message.

This function displays an error message on the console with color formatting.

Parameters

message	The error message to be displayed.
file	The file name where the error occurred.

info()

void info	(	cstring	message,
		cstring	file )

Display an informational message.

This function displays an informational message on the console with color formatting.

Parameters

message	The informational message to be displayed.
file	The file name where the information is coming from.

kprint()

void kprint

(

cstring

msg

)

RAW kernel print function for plain strings. (No Formatter & No Streams).

Parameters

msg	The string.

print()

void print

(

cstring

s

)

Plain print function, goes through the stream.

Parameters

s	Normal string to be displayed

print_bitmap()

void print_bitmap	(	int	x,
		int	y,
		int	w,
		int	h,
		bool *	pixels,
		int32	color )

Parameters

x
y
w
h
pixels
color

printbin()

void printbin

(

uint8_t

value

)

Prints a value in binary format.

Parameters

value

The value that will be printed

printf_internal()

void printf_internal	(	cstring	file,
		cstring	func,
		int64	line,
		cstring	format,
			... )

Prints with formatting supported.

Parameters

file	Filename where the function is called.
func	The function name.
line	The line.
format	String.
...

printfnoln_internal()

void printfnoln_internal	(	cstring	file,
		cstring	func,
		int64	line,
		cstring	format,
			... )

Prints with formatting supported (does not add an new line).

Parameters

file	Filename where the function is called.
func	The function name.
line	The line.
format	String.
...

putc()

void putc

(

char

c

)

Prints a char, using vput(char c); Replaces '' with "\b \b".

Parameters

c	char to print

snprintf()

int snprintf	(	char *	buf,
		size_t	size,
		const char *	fmt,
			... )

Formats a string into a fixed-size buffer.

Parameters

buf	destination buffer.
size	buffer size in bytes.
fmt	format string.

Returns

number of characters written (excluding null terminator).

vprintf_internal()

void vprintf_internal	(	stream_t	stream,
		cstring	file,
		cstring	func,
		int64	line,
		bool	newline,
		cstring	format,
		va_list	argp )

Core printf implementation used internally by both printf_internal and printfnoln_internal.

This function handles all formatted output processing, including support for format specifiers such as b, x, X, u, d, s, and c. It also interprets escape characters like '
', '\r', and '\t'.

The newline flag controls whether a newline character ('
') is printed automatically at the end of the output.

Parameters

stream	The unix like STDOUT, STDERR.
file	The source file name of the caller (for logging context)
func	The function name of the caller (for logging context)
line	The source line number of the call (for logging context)
newline	If true, appends a newline at the end of the formatted output
format	The printf-style format string
argp	The variable argument list (already started via va_start)

vputc()

void vputc

(

char

c

)

Prints a char though the standard streams.

Parameters

c	The charecter to be printed.

vsnprintf()

int vsnprintf	(	char *	buf,
		size_t	size,
		const char *	fmt,
		va_list	args )

Formats a string into a buffer using a va_list.

Parameters

buf	destination buffer.
size	buffer size in bytes.
fmt	format string.
args	variable argument list.

Returns

number of characters written (excluding null terminator).

warn()

void warn	(	cstring	message,
		cstring	file )

Display a warning message.

This function displays a warning message on the console with color formatting.

Parameters

message	The warning message to be displayed.
file	The file name where the warning occurred.

Variable Documentation

last_filename

string last_filename

extern

Definition at line 39 of file graphics.h.
